Electrical panel is a square-shaped container as a place to attach various components or electrical appliances.
Electrical panels are available in various sizes, materials, models and other specifications. equipped with a door on the front that can be opened and closed and can be locked, Has a square and closed from all sides to be protected from the entry of other objects from outside.
Wijaya Inti Sejahtera provide and service sale for Panel Distribution and Panel Motor for customer.
we can provide suggestions on the design and type of electrical panels that should be made, so that electrical panels can work in accordance with the applicable electrical standards in Indonesia and can be applied in accordance with the system / working principle desired by the customer.
To be able to operate a Electro motor (Electric Motors) 3 phase would require a Panel that serves as a motor control center to be operated easily, safely and equipped with good protection.

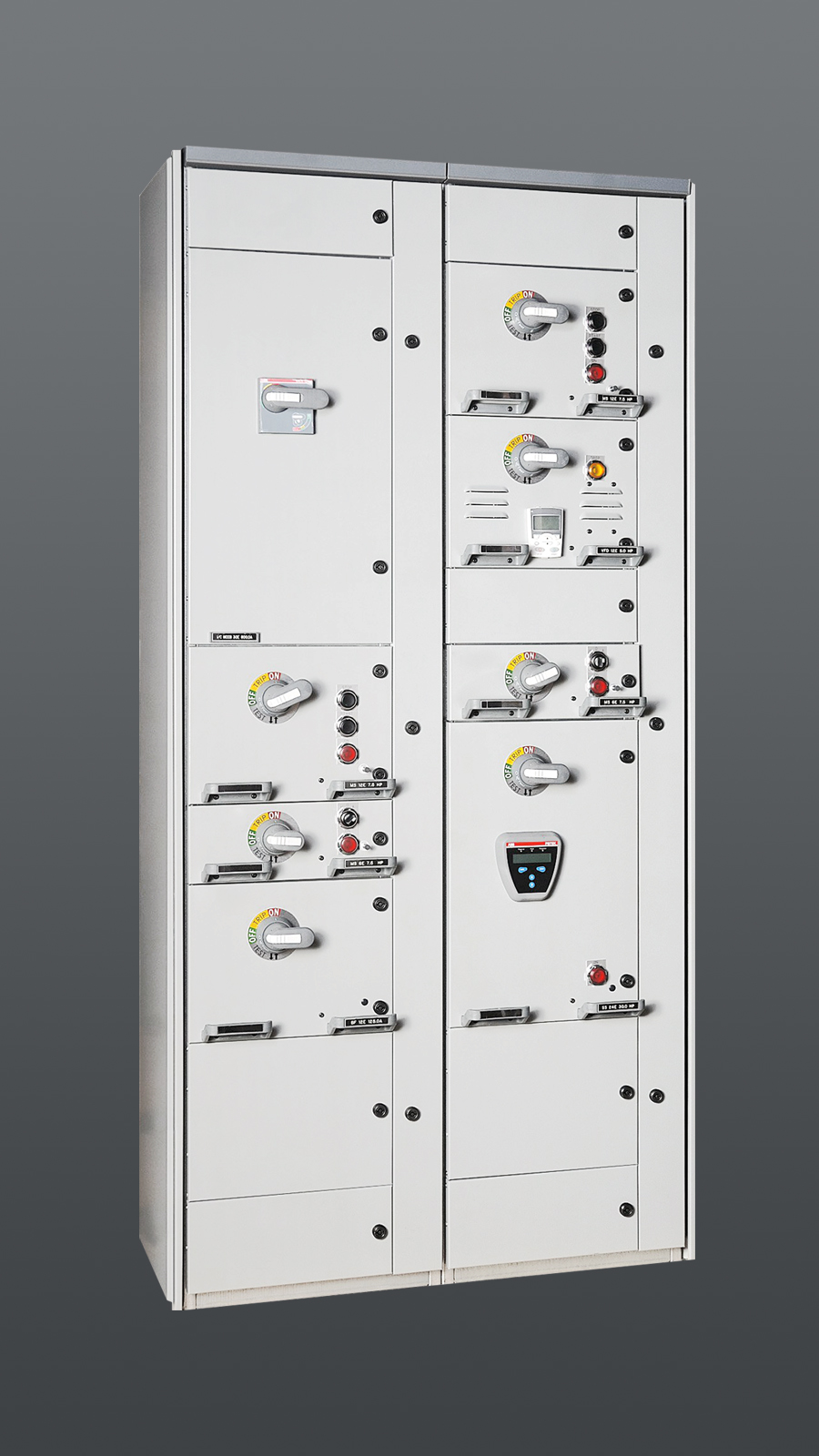

3 Phase Electric Motor Control Panel is usually placed on one main panel and can be used for the operation of some Electric Motors, the panel for some Electric Motors is commonly called the MCC (Motor Control Center).
Designed according to IEC standards Type wall mounted or floor standing IP 30 - IP 55 Widely used for pump applications, fans, conveyors, etc. Starter using delta starter, direct on line starter, soft starter or inverter The design is made in the form of a compartment or a group Applicable for indoor or outdoor use Earthing and neutral busbar For user safety, doors can be equipped with separate lock keys 1.5 or 2.0mm plate thickness using SPCC or SPHC plates Maximum dimensions 800 x 600 x 2000mm (length, width, height) or in accordance with demand Finishing with powder coating, by chemical phosphate treatment process with RAL 7032 color Texture or in accordance with request Capacity: 0.22 to 2000kW
Genset Sync Panel works to split existing power into multiple Gensets at once with configurable configurations. Example: use Genset A during 6 am to 6 pm, then use Genset B during 6 pm to 6 am; or use Genset A for power below 500 kVA, if above 500 kVA turn on Generator B in addition.
For power sharing systems, you can use the Sync Panel. This system is widely used if your power varies greatly. For example, your power varies from 300 kVA to 800 kVA. To use 1 unit 1000 kVA genset will be very inefficient fuel consumption. You can use 2 units of 500 kVA gensets. If the power is below 400 kVA, Sync Panel will automatically only use 1 genset, if more than 400 kVA, Sync Panel will use 2 generator.
Modular Version

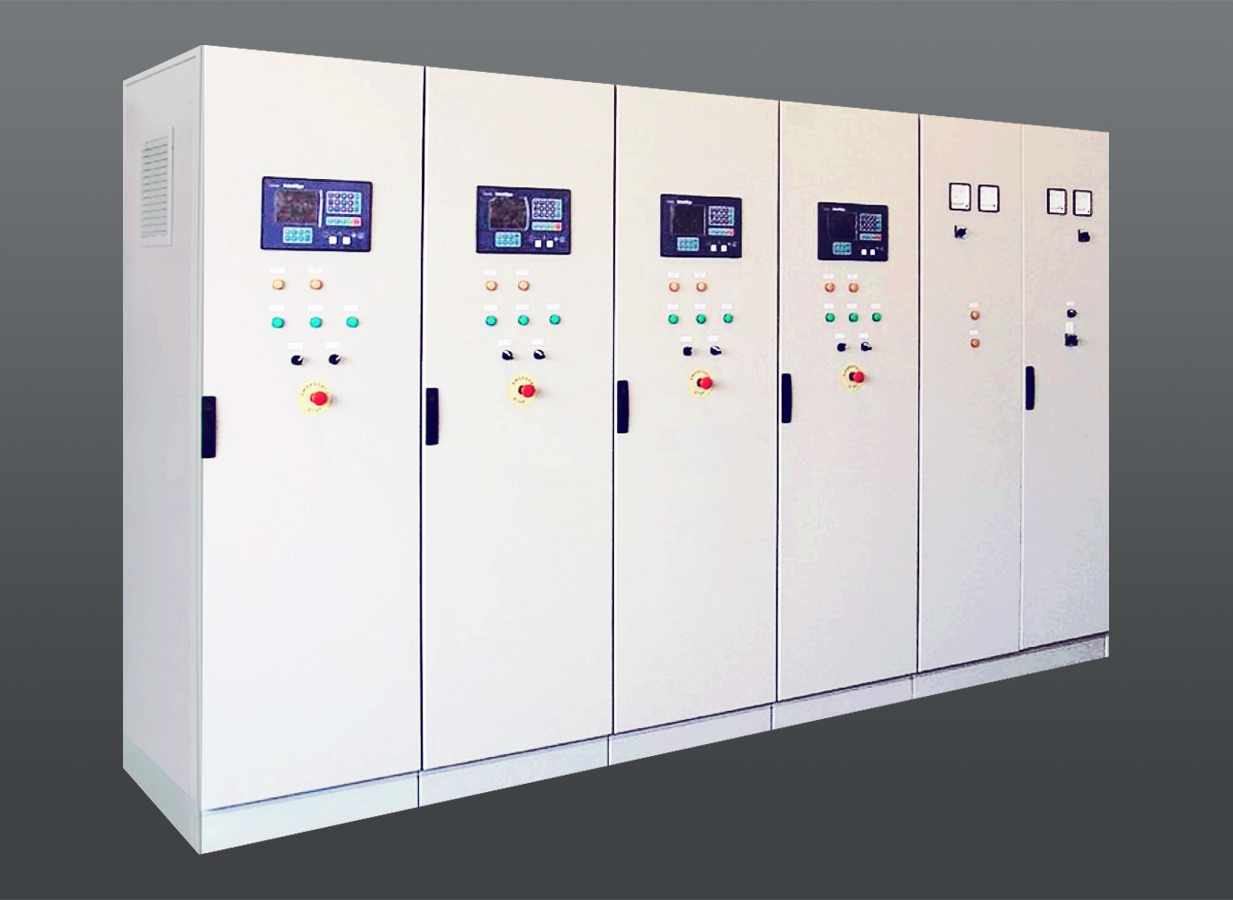

Genset control panel in modular version for multiple generators connected in one bus and operated in synchronization / parallel.
Group Version
Genset control panel in group version for multiple generators connected in one bus and operated in synchronization / parallel.

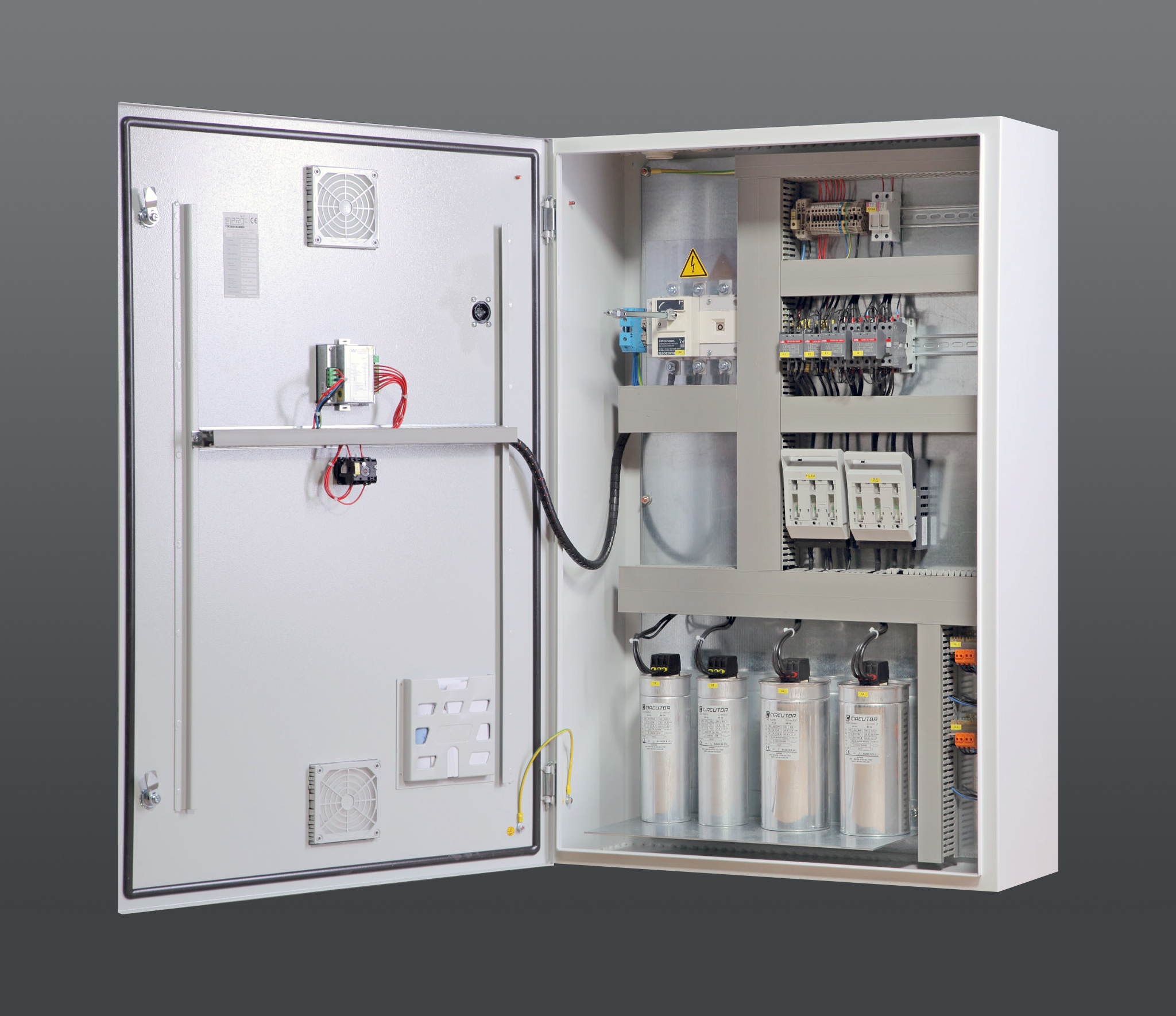

The capacitor bank panel optimizes the available power supply in addition to its function:
- Reduce the power penalty of PLN if power factor is less than 0.85
- Reduces heat dissipation on power cable
- Raise the voltage drop on the final branch circuit
Specifications: Designed according to IEC standards Type floor standing IP 30 - IP 54 Termination of current with load break switch or circuit breaker Capacitor protection using fuse or circuit breaker Working voltage 400 to 525V Can be equipped with detuned reactor Plate thickness 2.0 or 2.5mm using SPCC or SPHC plates Capacity up to 3000kVAr Finishing with powder coating, through chemical phosphate treatment process with RAL 7032 color Texture or in accordance with request Capacity up to 3000kVAr

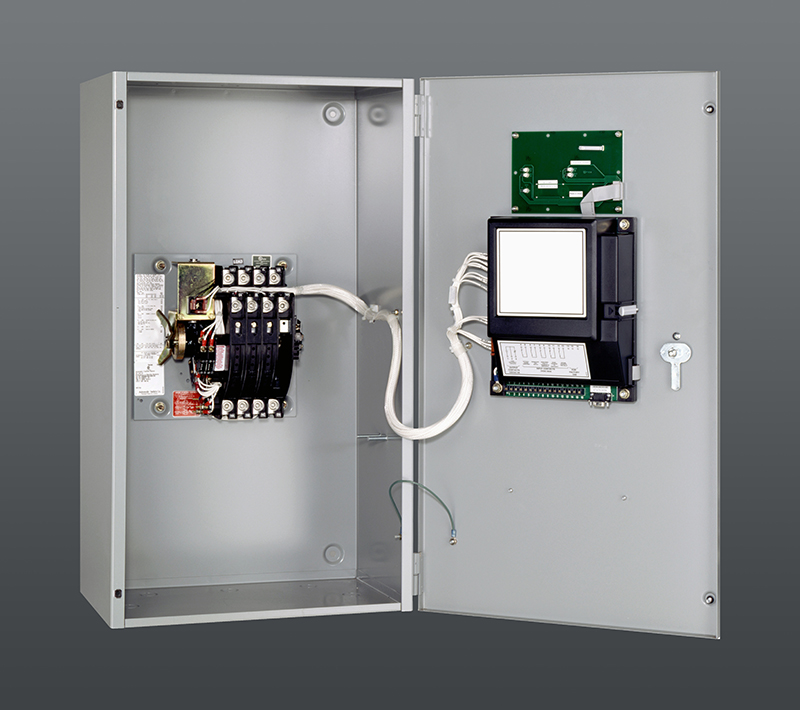

Panel Automatic Transfer Switch (ATS) or automatic transfer switch for PLN / genset applications. Consisting of circuit breaker, automatic control module that allows transfer from PLN to generator when PLN supply lost.
Specifications: Designed according to IEC standards Type wall mounted IP 30 - IP 55 Circuit breaker using motor The control module can be programmed according to user requirements Earthing and neutral busbar Thickness of 1.5 or 2.5mm plates using SPCC or SPHC plates Maximum dimensions 800 x 600 x 2000mm (length, width, height) Finishing with powder coating, through chemical phosphate treatment process with RAL 7032 color Texture or in accordance with request Flow Rating: 20 to 6300A 45 - 125A power circuit with interlock contactor / motorize circuit breaker - 4 poles 250 - 6300A power circuit with interlock motorize circuit breaker

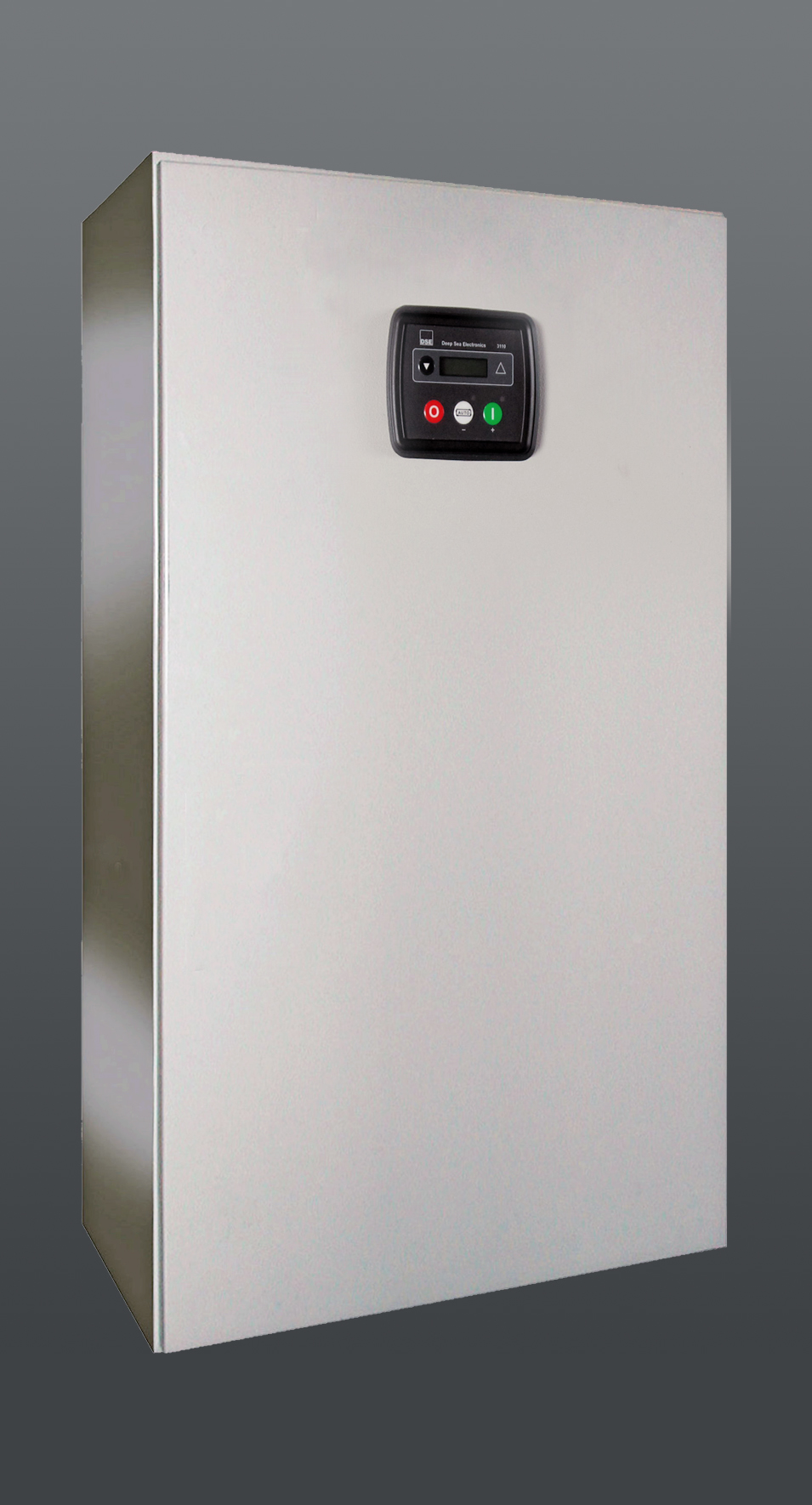

The Automatic Mains Failure (AMF) control panel is a Panel equipped with control module for automatic genset control, and can stop the operation of the generator when a fault occurs. All parameters and alarm signals that occur when the system works can be displayed. This will make it easier for the operator to analyze the cause of the alarm.
Specifications: Designed according to IEC standards Type wall mounted or floor standing IP 30 - IP 55 MCCB using motor The control module can be programmed Equipped with protection for voltage Earthing and neutral busbar 1.5 or 2.0mm plate thickness using SPCC or SPHC plates Maximum dimensions 800 x 600 x 2000mm (length, width, height) Finishing with powder coating, through chemical phosphate treatment process with RAL 7032 color Texture or in accordance with request Capacity: 20 to 2000kVA

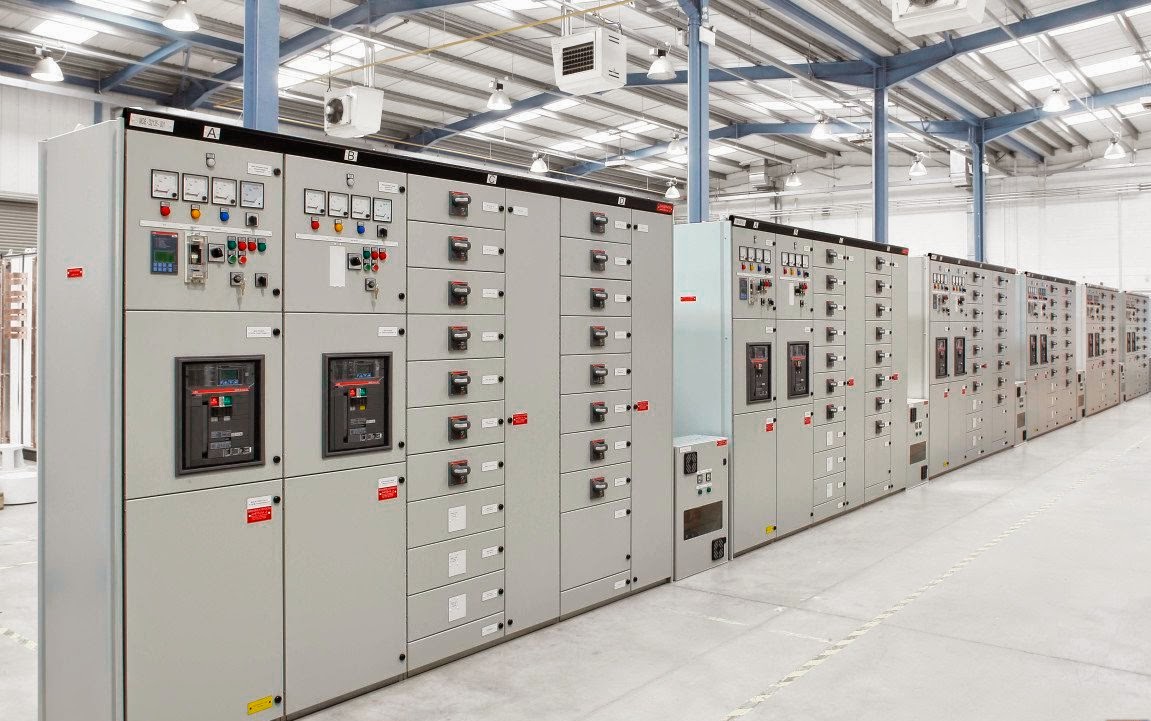

The low voltage main panel or LVMDP (Low Voltage Main Distribution Panel) functions as the power receptacle of the transformer and further distributes the power to a low voltage sub-distribution panel or LVSDP (Low Voltage Sub Distribution Panel) using Air Circuit Breaker or Molded Case Circuit Breaker. The sub-distribution panel serves to distribute the power it receives to equipment that uses electrical power.

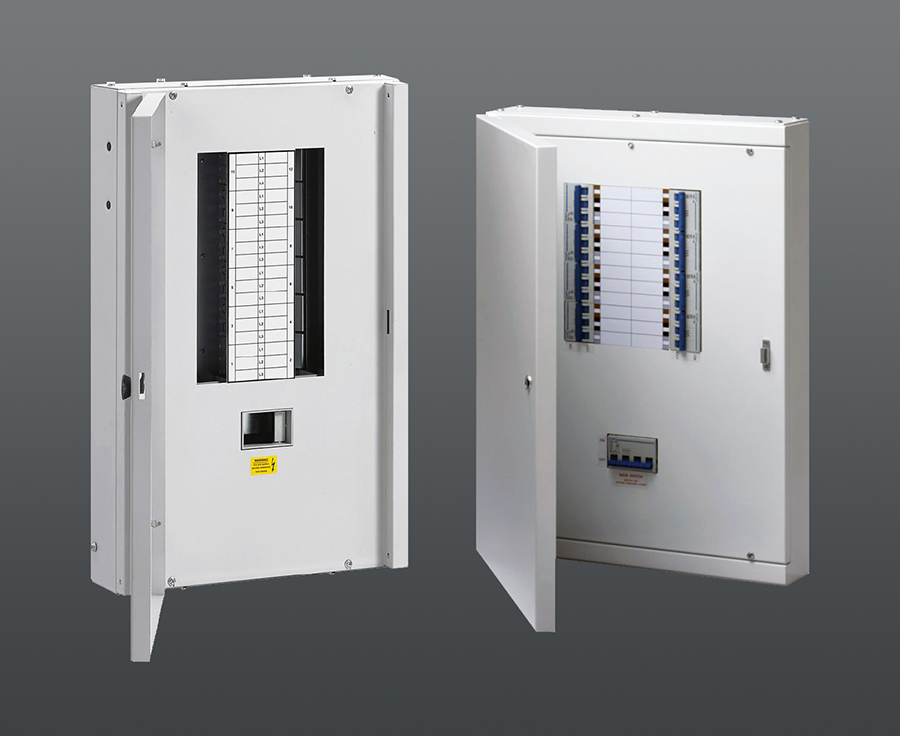

Lighting and air conditioning Board have function as a regulator to turn on the lights and ac automatically and divide the flow of electricity according to the desire we can also protect in case of interference with the electricity.
Designed according to IEC standards Type wall mounted IP 30 - IP 55 MCB and ELCB installed in DIN rail for easy installation and replacement Earthing and neutral busbar For user safety, doors can be equipped with separate lock keys 1.5 or 2.0mm plate thickness using SPCC or SPHC plates Finishing with powder coating, through chemical phosphate treatment process with RAL 7032 color Texture or in accordance with request Capacity: 20 to 2000kVA
